Polygons

To add a polygon, use the polygon parameter in this format:

polygon=polygonStyle|polygonCoord1|polygonCoord2|...

• polygonCoord: List of coordinates in lat, lon format, separated by |. The first and last coordinates should be the same to close the polygon.

• polygonStyle: Customize the polygon with:

  Parameter	Default	Description
  color	#4874db	Defines the stroke color of the polygon.
  weight	5	Sets the stroke width of the polygon.
  fill		Specifies the fill color of the polygon.
  strokeDasharray	(none)	Pattern of dashes and gaps, e.g., 5,5 see stroke-dasharray.

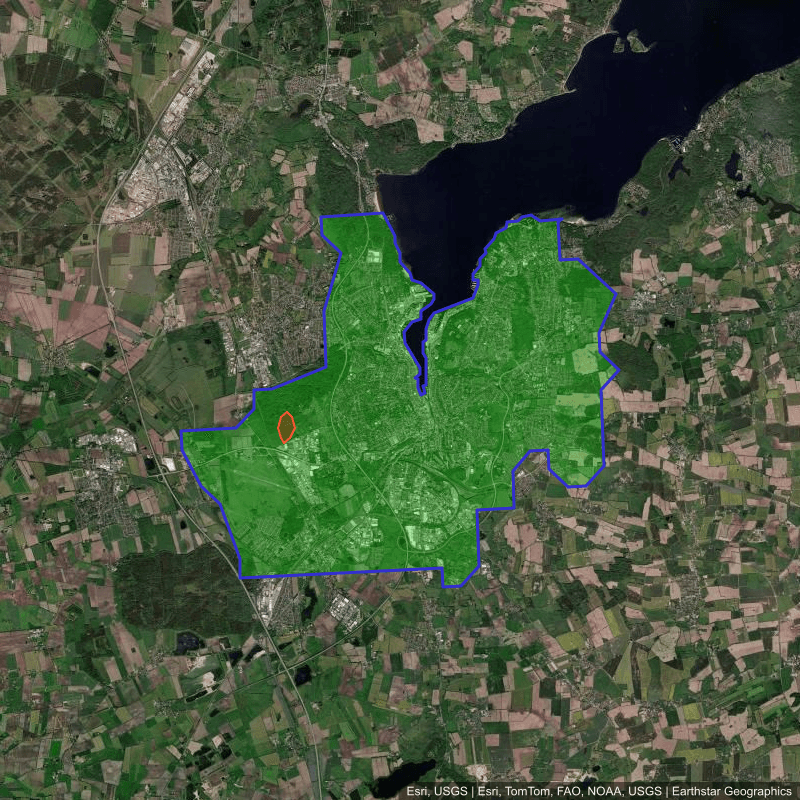

Example: Polygon with color 4874db, weight 7, and fill eb7a34

http://localhost:3000/api/staticmaps?width=800&height=800&basemap=satellite&polygon=color:332fd0|weight:3|fill:00FF003F|54.82446670532232,9.421944618225211|54.81986236572277,9.426388740539608|54.818473815918026,9.426388740539608|54.8165283203125,9.428054809570256|54.814861297607365,9.428054809570256|54.812637329101676,9.431389808654785|54.81124877929693,9.43194580078125|54.81069564819336,9.435277938842773|54.80847167968744,9.43972206115734|54.80736160278332,9.43972206115734|54.806526184082145,9.43861007690441|54.8051376342774,9.435277938842773|54.803470611572266,9.435277938842773|54.802917480468864,9.43194580078125|54.800971984863395,9.429166793823185|54.79875183105469,9.429720878601074|54.79375076293945,9.434721946716252|54.7926406860351,9.434721946716252|54.791805267333984,9.433055877685604|54.791526794433594,9.43416786193859|54.78985977172863,9.43416786193859|54.788471221923885,9.435277938842773|54.788749694824276,9.436389923095703|54.79013824462902,9.435833930969238|54.79041671752941,9.436944007873592|54.79569625854498,9.436945915222168|54.79680633544933,9.435833930969238|54.79902648925787,9.435833930969238|54.79930496215826,9.436944007873592|54.80152893066412,9.436944007873592|54.803195953369254,9.438055992126522|54.80458450317383,9.43972206115734|54.80764007568365,9.453055381774902|54.81013870239258,9.454723358154297|54.81124877929693,9.454723358154297|54.81124877929693,9.453055381774902|54.812362670898494,9.453055381774902|54.81402587890625,9.455277442932186|54.81541824340832,9.455277442932186|54.8165283203125,9.457498550415039|54.81735992431646,9.456946372985897|54.81930541992199,9.460277557373104|54.82041549682617,9.460833549499569|54.82152938842768,9.464165687561035|54.82263946533203,9.4647216796875|54.82291793823242,9.468609809875431|54.823749542236385,9.469721794128361|54.824028015136776,9.473056793212947|54.82291793823242,9.47583293914795|54.82319259643566,9.483611106872559|54.82273864746105,9.482230186462402|54.815219879150504,9.482759475708065|54.81542968750006,9.488989830017147|54.80834197998047,9.501990318298454|54.80062103271496,9.496249198913574|54.79687118530285,9.496500015258846|54.793331146240234,9.502988815307617|54.789379119873104,9.496978759765625|54.77442932128912,9.497907638549862|54.77051162719732,9.491870880126896|54.7703094482423,9.48559856414795|54.773860931396484,9.479109764099235|54.77759170532232,9.478879928588924|54.77740097045904,9.472619056701717|54.77347946166992,9.466569900512752|54.76604080200195,9.466990470886344|54.765670776367244,9.454428672790527|54.75452041625982,9.4550399780274|54.75062942504883,9.448939323425293|54.75045013427746,9.44265079498291|54.75416183471691,9.442468643188477|54.75226974487316,9.373150825500545|54.75595855712902,9.372980117797795|54.76689147949213,9.366157531738338|54.77040863037115,9.359689712524414|54.777629852295036,9.353049278259391|54.78133010864258,9.352879524230957|54.78186035156256,9.371758460998592|54.78573989868164,9.377868652343864|54.789451599121094,9.377679824829158|54.78963851928722,9.383960723876953|54.79391860961914,9.402589797973633|54.80508041381847,9.401970863342285|54.816478729248104,9.40755939483654|54.82001113891596,9.401079177856445|54.823760986328125,9.400839805603084|54.82446670532232,9.421944618225211&polygon=color:FF5733|weight:2|fill:FF00003F|54.780,9.390|54.782,9.392|54.784,9.391|54.785,9.389|54.784,9.387|54.782,9.386|54.780,9.387|54.779,9.388|54.780,9.390
